METROLOG XG

Metrolog XG is a polyvalent 3D inspection software that fulfills today's needs in terms of 3D measuring and quality control. It has been developed by a team rich of 20 years of experience and features state-of-the-art technologies for quality control.

Metrolog XG features:

  • Provided as standard 3D software on various brands of CMMs.
  • Especially suited to retrofit any kind of CMMs, old or new.
  • Runs under Windows XP, Vista and Seven
  • Connects to all type of CMM, manual or CNC, using the standard Metrologic Group interfaces.
  • Built-in DMIS V4.00 engine (Dimensional Measuring Interface Specification).

Measuring of prismatic parts (algorithms certified by the P.T.B. and the N.I.S.T).

Measuring of free-form parts (surface points, edge points, sections, ...) related to any CAD system.

Input CAD file format:

  • Neutral: IGES, VDAFS, SET, UNISURF, STEP
  • Native Direct: CATIA V4, CATIA V5, IDEAS, ProE, UNIGRAPHICS, PARASOLID.

Measuring of profiles and sections.

  • High speed Scanning and digitizing using SP 600
  • Graphical off-line programming module and virtual simulation.
  • Compensation of CMM geometry using 21 parameter error-mapping.
  • Statistical analysis module.

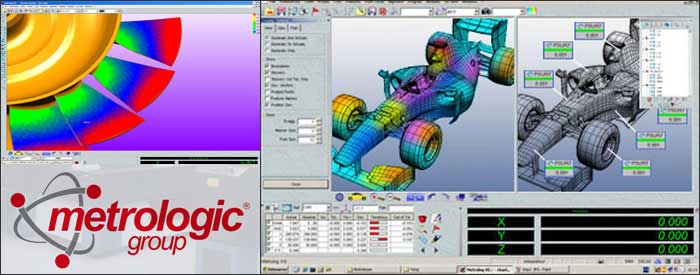

  • Powerful reporting capabilities: graphical, text or user-definable (see examples on the right).
  • Export of results in different format (DMIS, VDAFS, IGES, Excel, ...).
  • Available in 18 languages.
